Midascon Smart For Outdoor

RTLS, Scanner

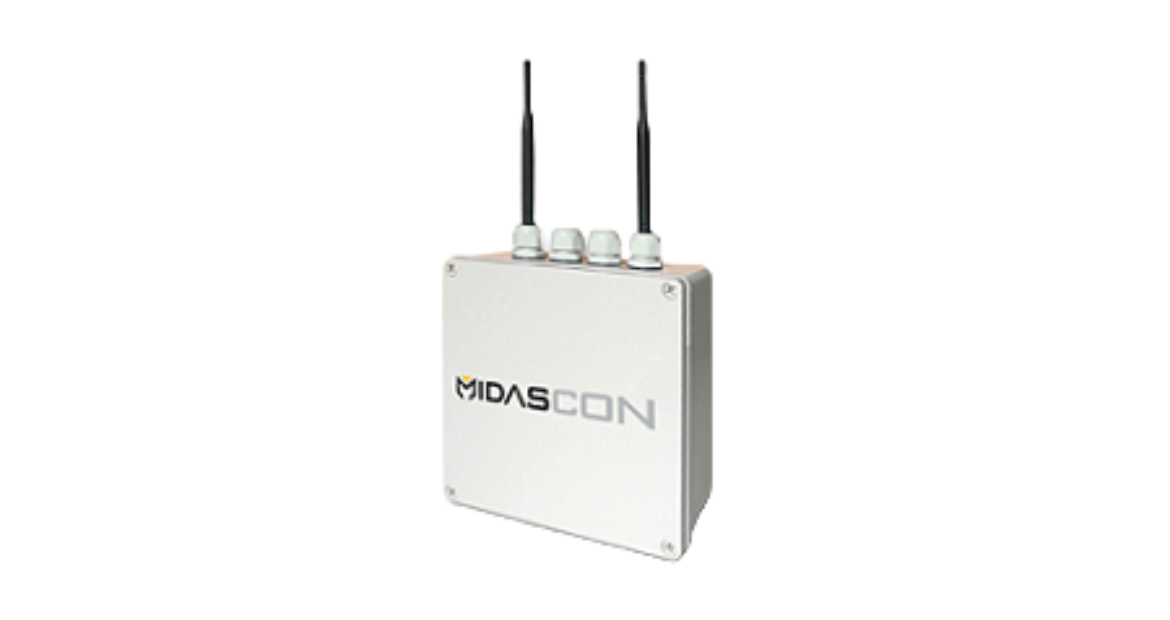

MIDASCON Smart For Outdoor

MIDASCON Smart For Outdoor는 MIDASCON Smart와 동일한 사양을 갖추면서도, 방수·방진·난연 케이스를 적용하여 실외 및 공사 현장과 같은 환경에서도 안정적으로 설치 및 운영할 수 있도록 설계된 제품입니다.
또한, LTE 모뎀, GPS, 보조 배터리 등의 옵션을 추가하여 네트워크 연결성과 이동성을 확장할 수 있어 다양한 현장에서 더욱 유연한 운용이 가능합니다.

Hardware Specification

CPU

Allwinner A20 dual core Cortex-A7 (1GHz)

Memory (Storage/RAM)

4 GB / 1 GB

OS

Linux Kernel 4.3.3

Bluetooth Interface

Bluetooth 4.0 dual mode [classic/ble support]

Power Supply or Input Voltage

PoE: IEEE 802.3af, IEEE 802.3at

Power Consumption

7W

Environmental

Operating Temperature : 0℃ to 50℃

Storage Temperature

-30℃ to 85℃

Enclosure features

Waterproof, Dustproof, Flame Retardant

Options

LTE, GPS, Battery

Size / Color

200 X 200 X 70 mm / Ivory
